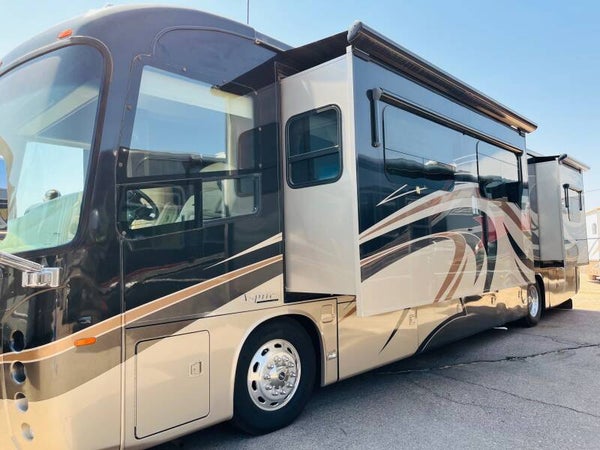

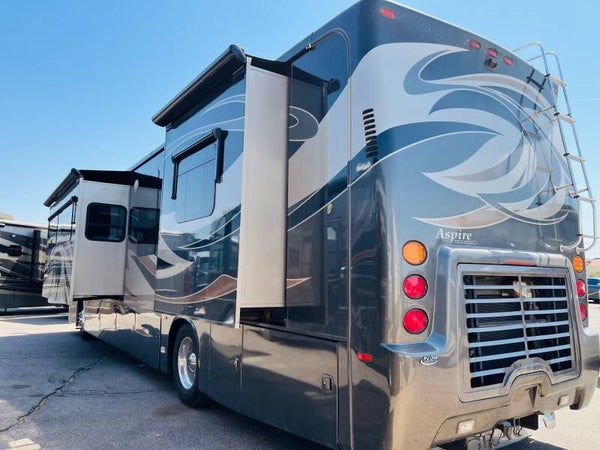

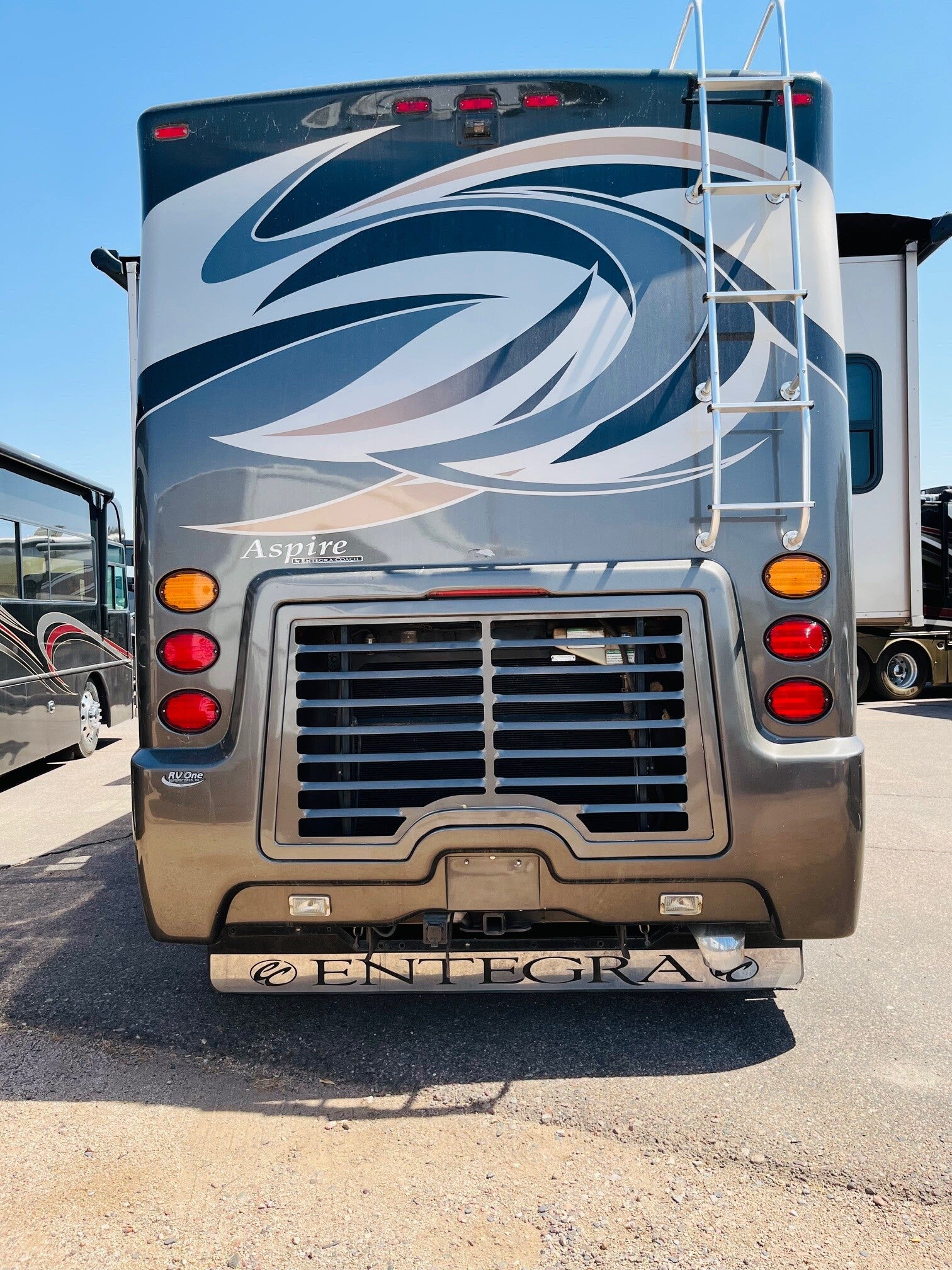

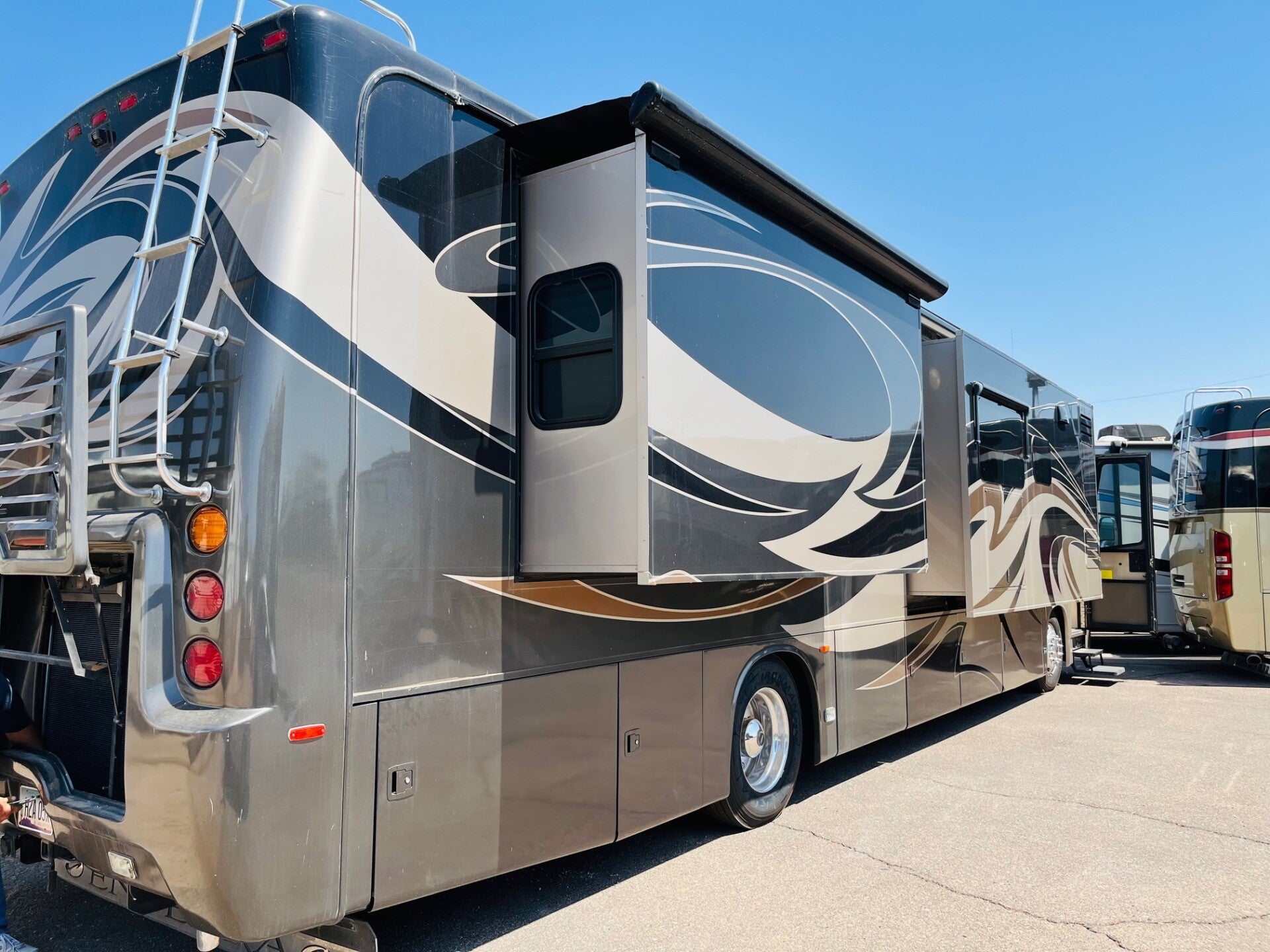

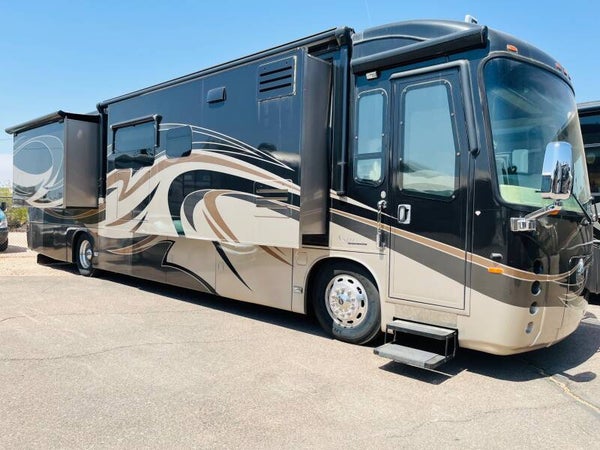

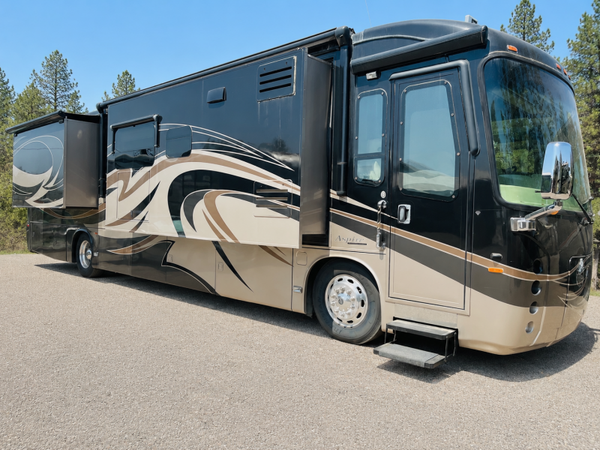

2011 Entegra Aspire M-40SKT

The 2011 Entegra Coach Aspire 40SKT is a luxury Class A diesel pusher built on the Freightliner XCR chassis and powered by a 400-hp Cummins ISL diesel with an Allison 3000 MH 6-speed transmission. The 40SKT is a 40'9" coach with a 101" exterior width, 84" interior ceiling height, and three-slide floorplan.

General Specifications

• Year: 2011
• Manufacturer: Entegra Coach
• Model: Aspire 40SKT
• Type: Class A Diesel Motorhome

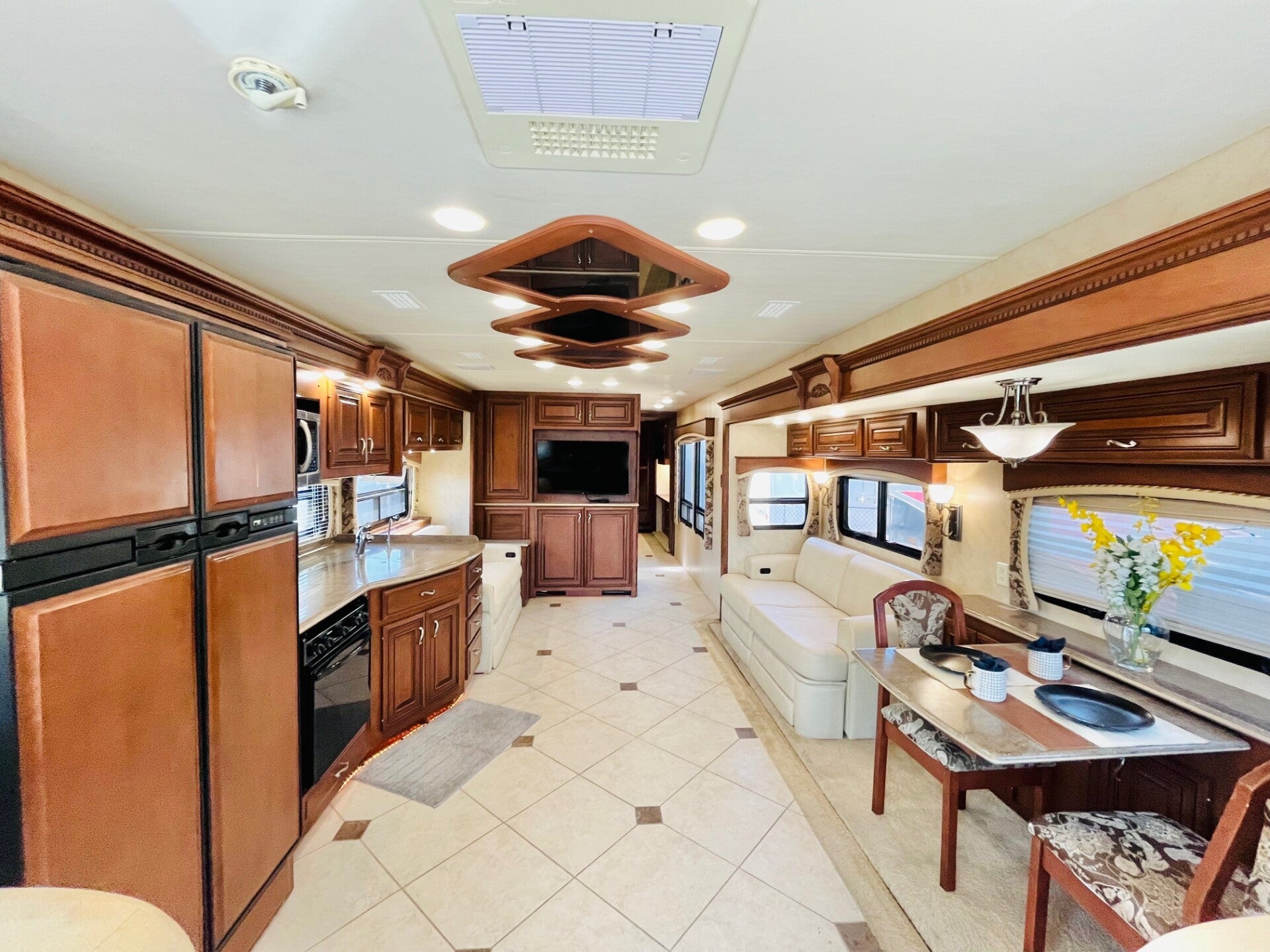

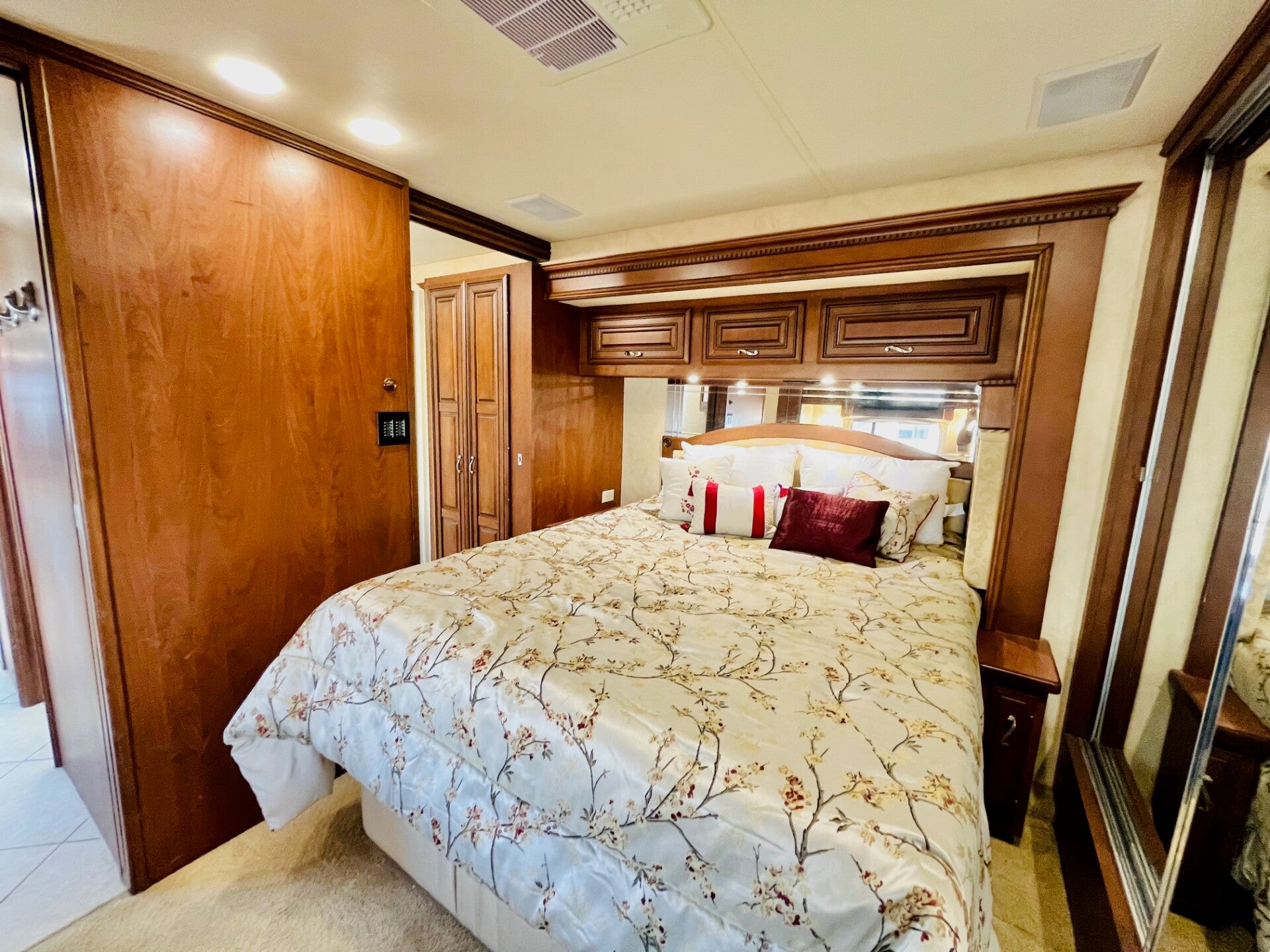

• Floorplan: Rear Bedroom / Kitchen & Living Area
• Length: 40' 9"
• Exterior Width: 101" / 8'5"
• Exterior Height: 12' 8"
• Interior Height: 84" / 7'
• Wheelbase: 266"
• Slide-outs: 3
• Sleeping Capacity: approximately 6
• GVWR: 32,400 lbs
• GCWR: 42,400 lbs
• Front GAWR: 12,400 lbs
• Rear GAWR: 20,000 lbs
• Tag Axle: None
• Fresh Water: 81 gallons
• Gray Water: 60 gallons
• Black Water: 60 gallons

Engine & Chassis

• Engine: Cummins ISL turbocharged diesel
• Displacement: 8.9L
• Horsepower: 400 HP
• Torque: 1,250 lb-ft
• Transmission: Allison 3000 MH
• Transmission: 6-speed electronic automatic
• Chassis: Freightliner XCR Series
• Rear-engine diesel pusher
• Rear-mounted radiator
• Rear axle: 20,000-lb rated
• Rear axle ratio: 4.63
• Fuel capacity: 100 gallons
• Alternator: 170 amp
• Engine block heater: 1,000 watts
• Exhaust/Jake brake: Two-stage
• Air suspension: Neway
• Front suspension: Wide-track I-beam axle
• Steering: Tilt/telescoping
• Brakes: Bendix air-disc front brakes with ABS
• Tires: Michelin 275/80R 22.5
• Wheels: Polished aluminum
• Hitch: 10,000 lbs with 7-pin connector

Fuel & Towing

• Diesel fuel: 100 gallons
• Dual fuel fills
• 10,000-lb hitch
• 7-pin trailer connector
• Remote air fill
• Air hose
• Two-stage Jake brake
• Freightliner XCR commercial-duty chassis
